Welcome! Thank you for choosing to look at my 3D printer enclosure design. This enclosure is designed around Creality’s Ender 3 Pro and utilizes IKEA Lack Tables to create the perfect reliable and low-cost setup.
Initial Design:

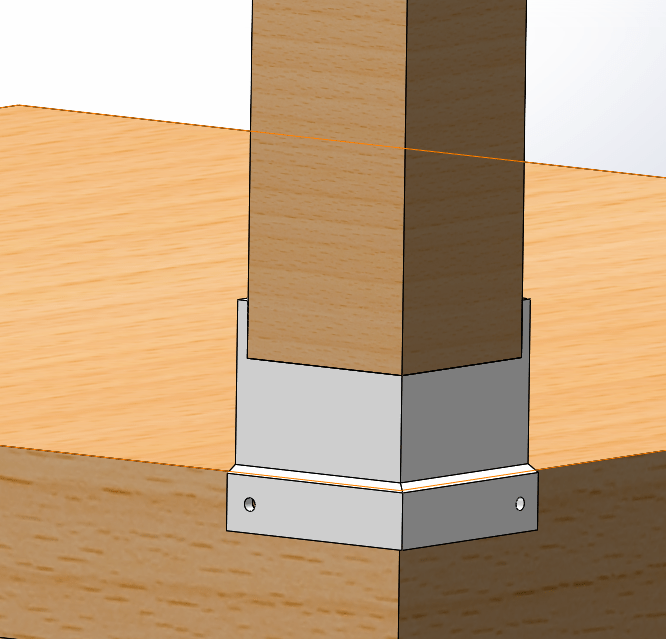

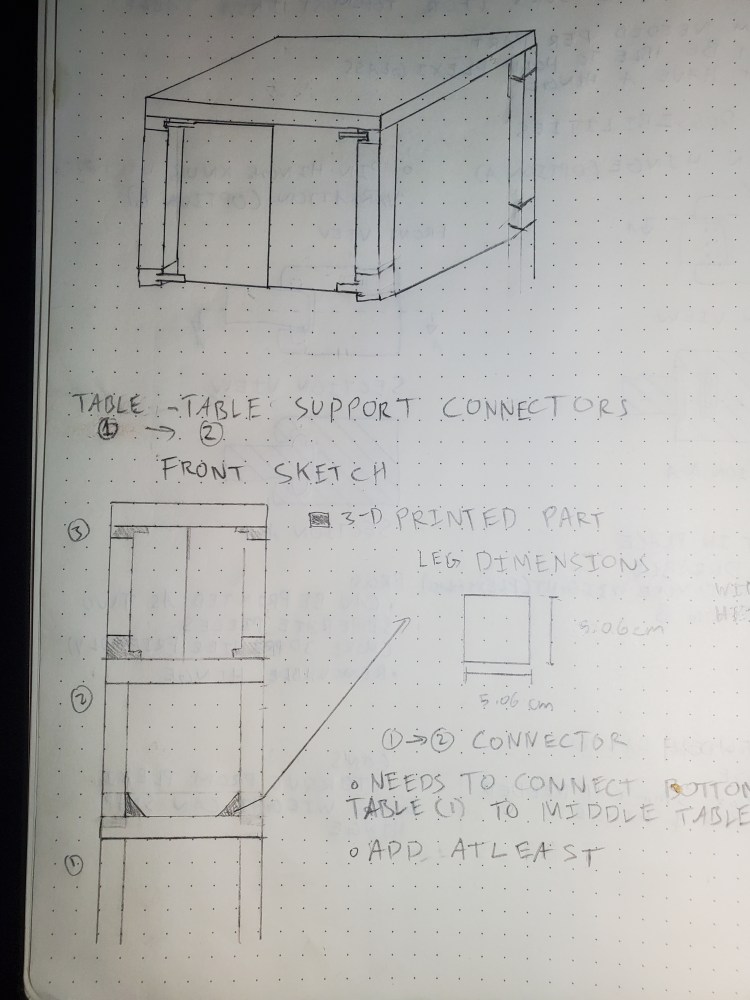

Below are images of three prototype leg-table connectors that I designed using Solidworks CAD. Left-most image is my first attempt and the right-most image is my final design which is currently being 3D printed.
Final Design:

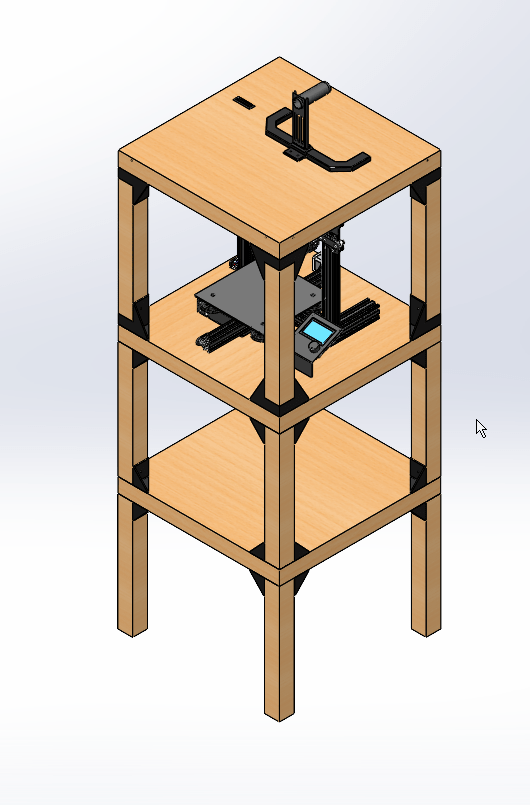

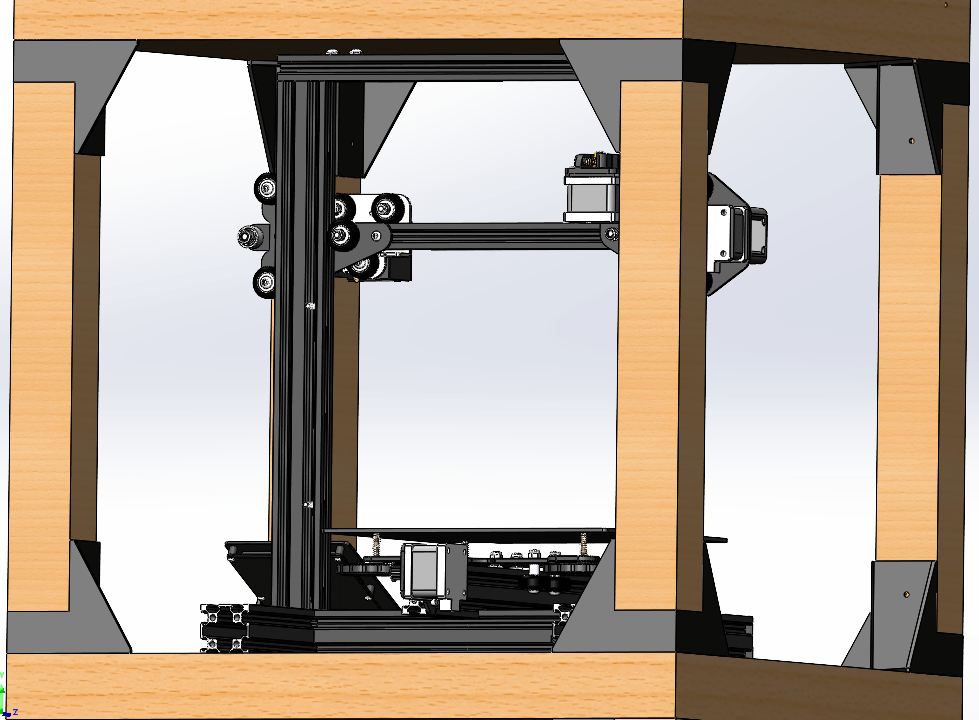

Scroll down below to see the combination of 3 IKEA Lack tables and my final designs to enclose the Creality’s Ender 3 Pro!

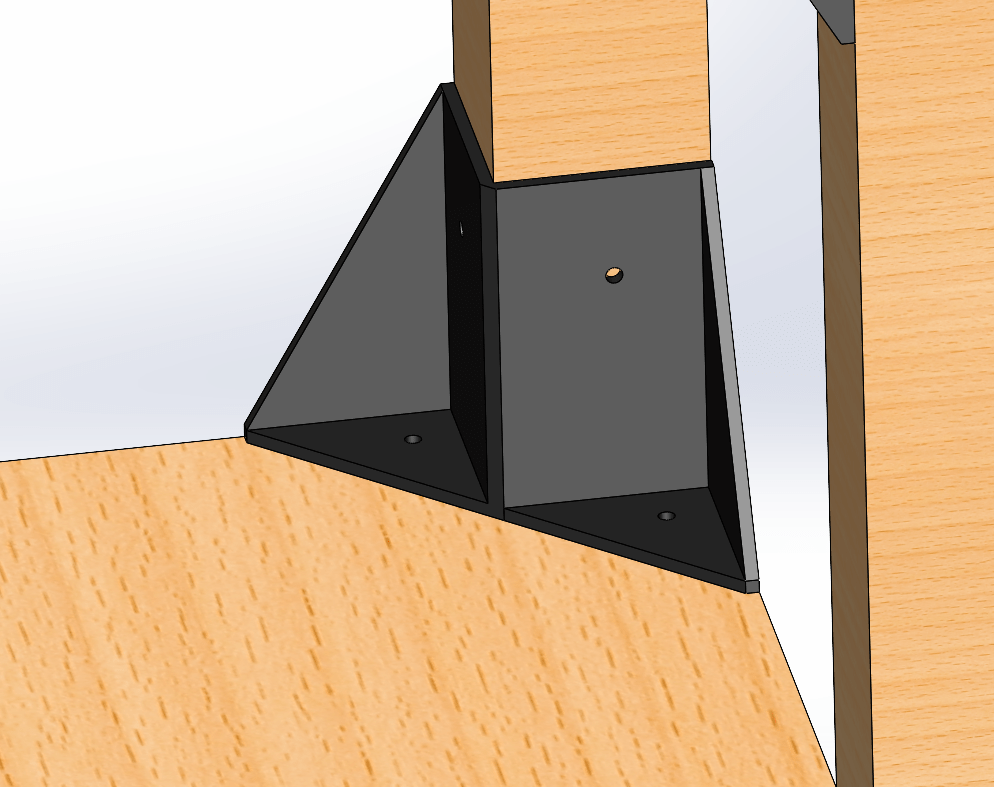

Leg-Table Connector:

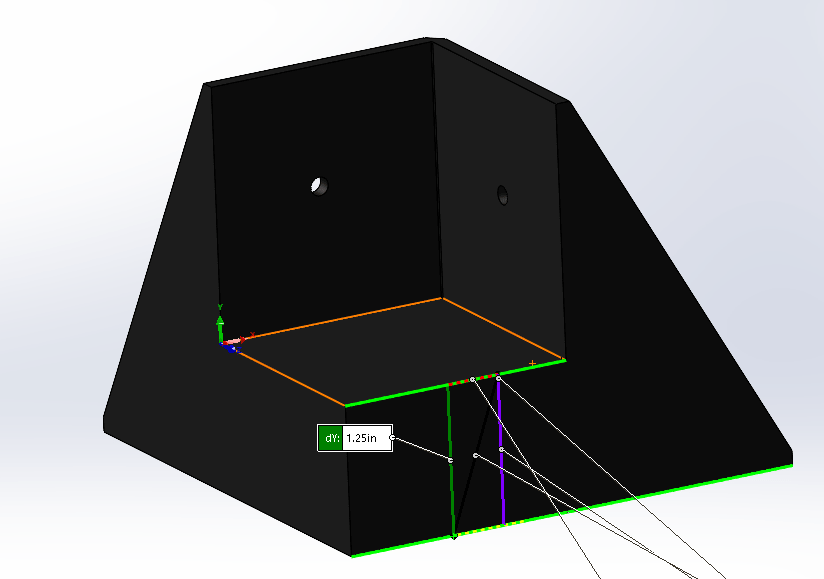

Leg-Table Connector 1.25″ risers:

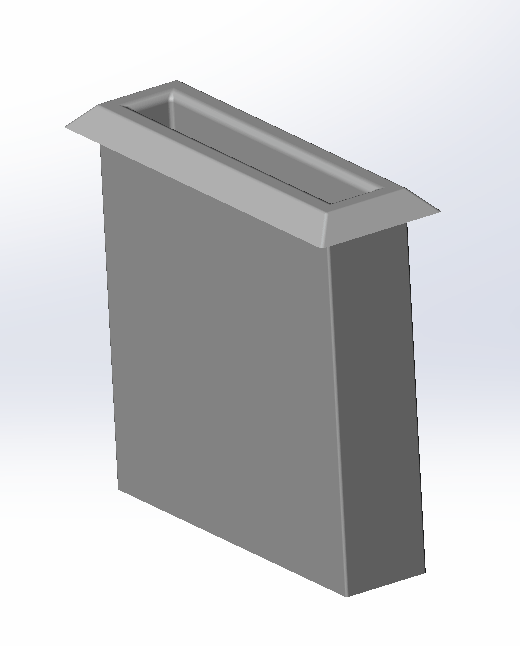

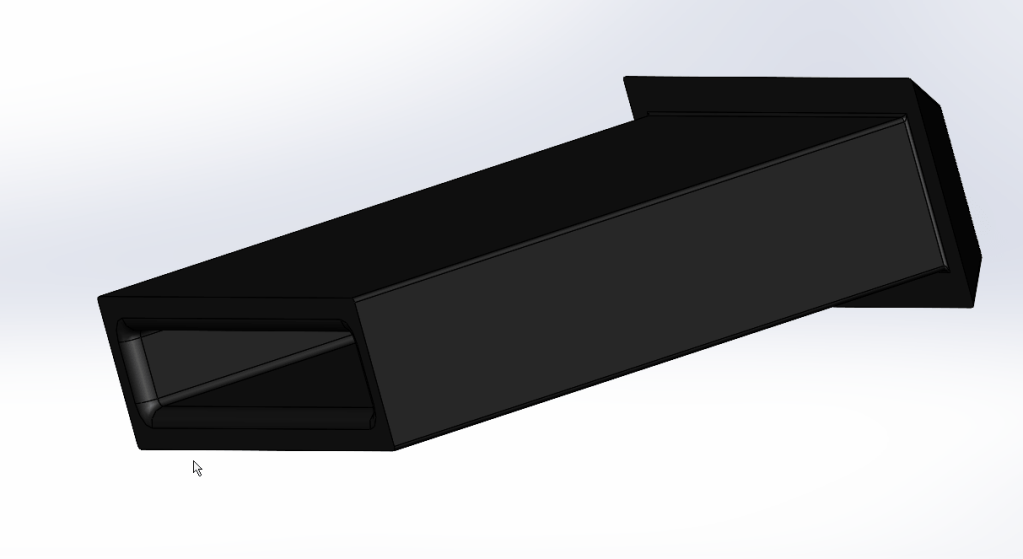

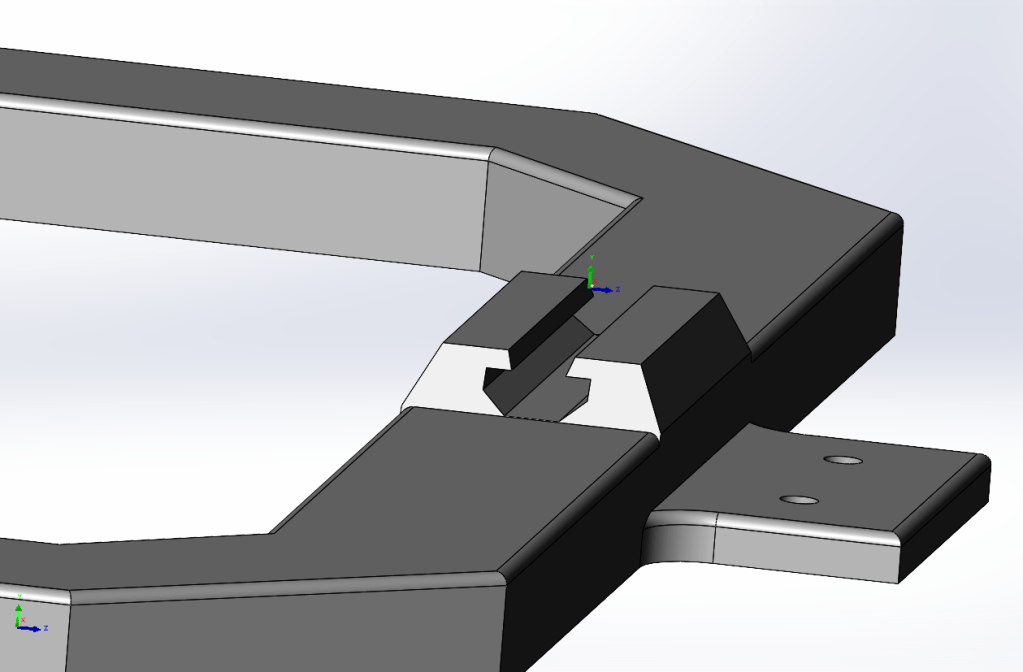

Filament Guide:

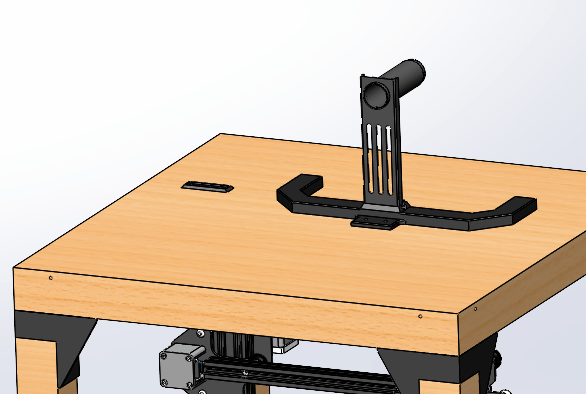

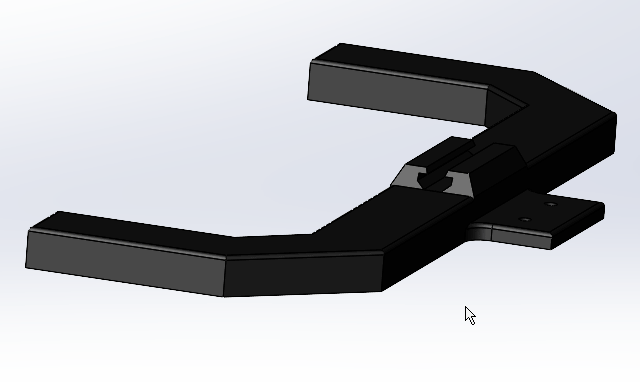

Spool Holder:
